Water Quality - Online

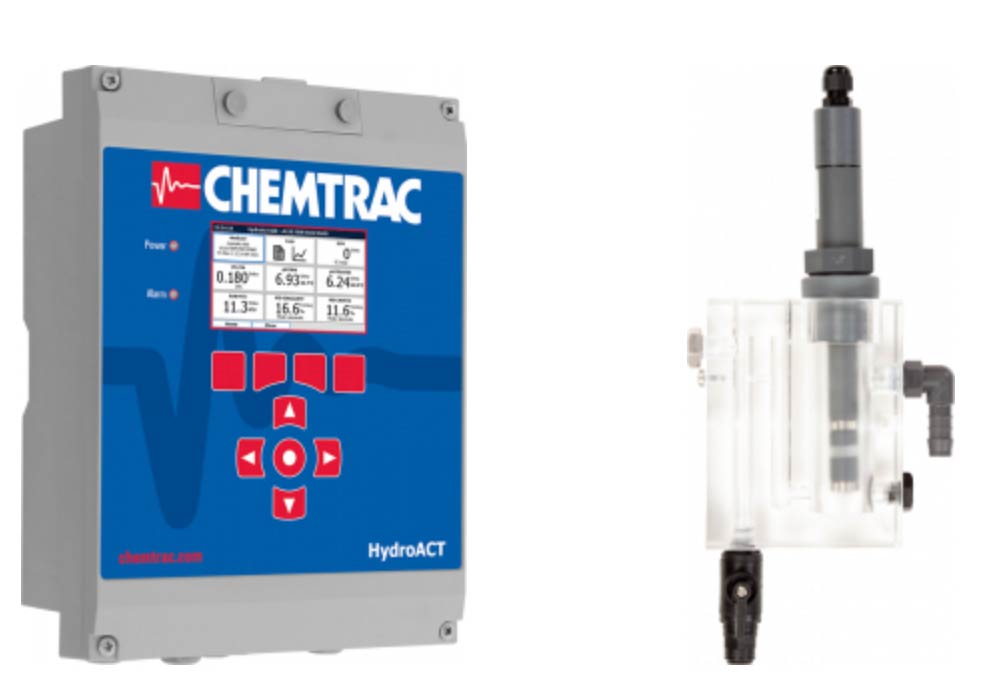

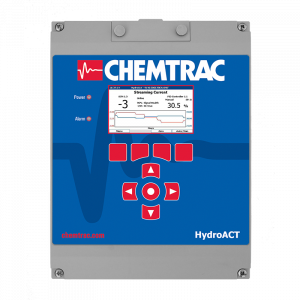

HydroACT Reagentless Chlorine Analyzer

The HydroACT Reagentless Chlorine Analyzer takes online disinfection monitoring to a new level of reliability by offering industry-leading performance, an excellent track record of EPA Method 334.0 compliance, reduced pH dependency, and no requirement for zero calibration. Chemtrac’s line of membrane covered Free and Total Chlorine sensors have no moving parts, no bottles of reagent to change out monthly, and quarterly maintenance takes less than five minutes to perform.

The HydroACT Chlorine Analyzer standard configuration includes version HA2 analyzer, 1 sensor (Free or Total Chlorine), 1 analog output, and 1 year consumables. Other configurations available.

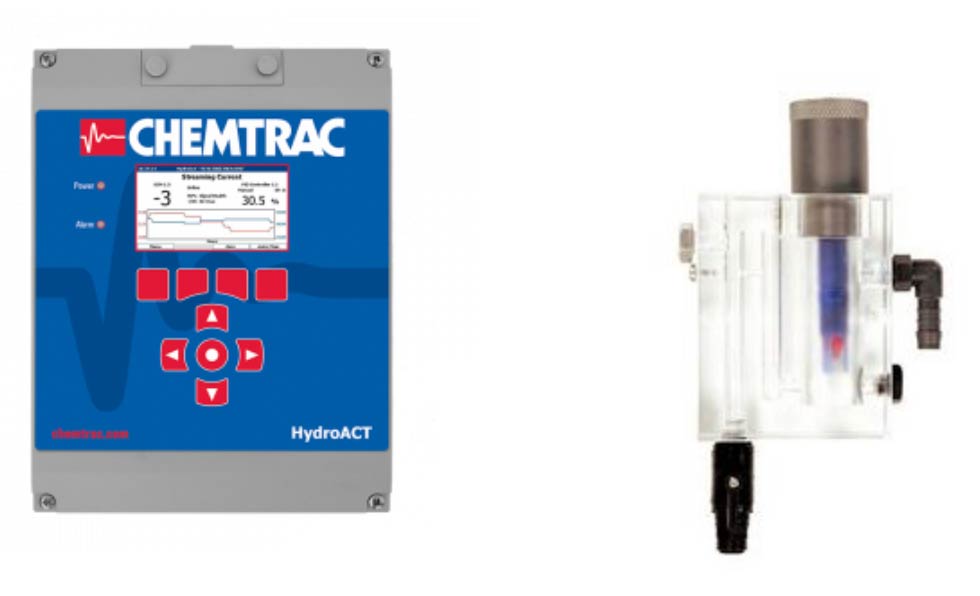

The HydroACT range of online analyzers utilize the very latest and best pH sensors available in the world today for measuring the online pH of any aqueous solution. They are combination glass electrodes with integral reference, automatic temperature combination, solid polymeric junction (pH4), which use no reagents, are extremely stable, and have reduced maintenance and reduced whole life costs.

The Chemtrac DO Probe is the first of its kind in the world to offer automatic in-situ sensor verification as an option. The HydroACT 300 is able to reduce maintenance by  automatically checking its sensor operation at user defined time intervals. Calibration on the In-Situ sensor is normally required only once per annum so with the automatic sensor verification option and the self clean option the sensor may not need to be inspected at all for a full year.

Turbidity is the key measurement parameter for determining drinking water quality.  Especially in the low measuring range, on-line process turbidimeters often cause problems. Up to now!

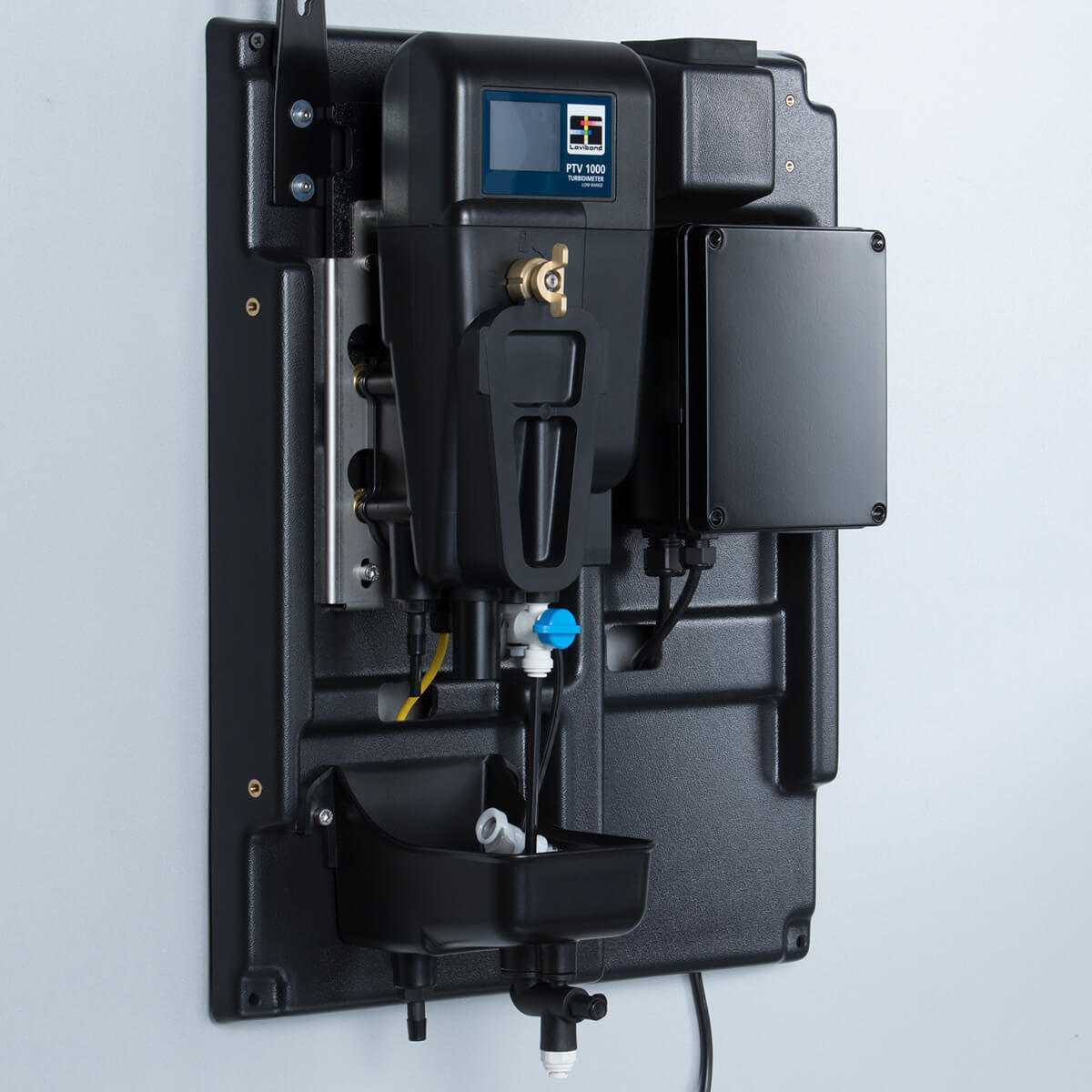

Lovibond® Tintometer® assembled a team of globally recognized turbidity experts and tasked them with creating a new process instrument that addresses all of the issues customers struggle with while using their current turbidity systems. These advancements, along with the addition of state-of-the-art communications and user interface make the PTV 1000 and PTV 2000 the next generation of process turbidimeters.

• Simple construction and installation
• No additional equipment and low maintenance
• Easy calibration and verification
• Different users with individual roles
• Data management, cleaning and maintenance with intuitive touch screen
• Smart control even of several devices via the free Aqua LXP App
• Economical T-CALplus® standards for verification and calibration without bubbles and safe handling
• Unrivaled low flow rates of 30 to 150 ml/min (70% less than other devices)
• immersed detector and heated optics prevent disturbing condensation on the optics
• Stable, drift-free and durable LED light sources
• Design of the measuring body and flow pattern prevent deposits
• Integrated bubble trap for trouble-free measurement

The PTV devices are specialized for the low measuring range:

• The primary measuring range in drinking water is 0.010 to 10 NTU
• The specified test range is 0.010 to 100 NTU

Learn more about the PTV by downloading the Product Data Sheet or viewing this page from Lovibond.
